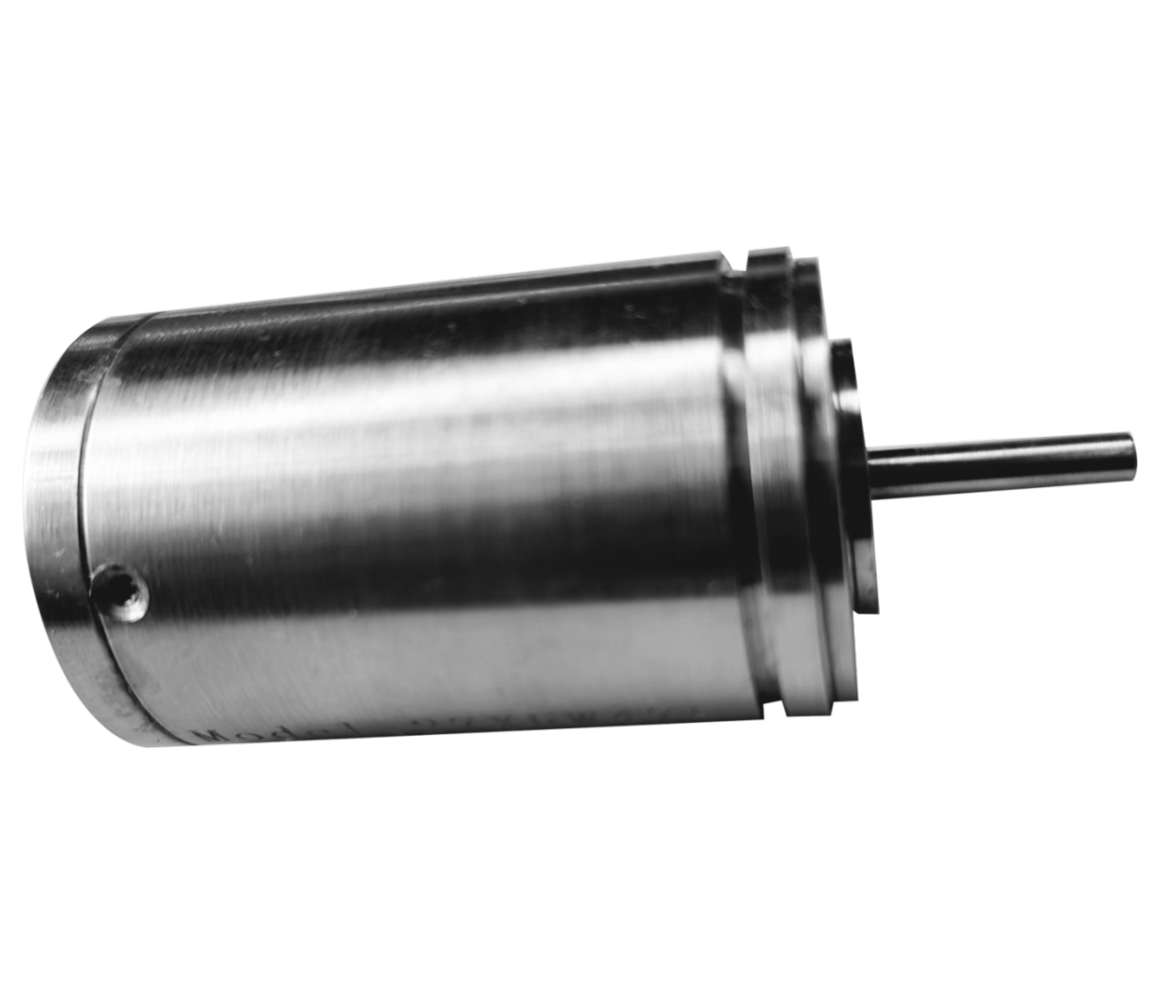

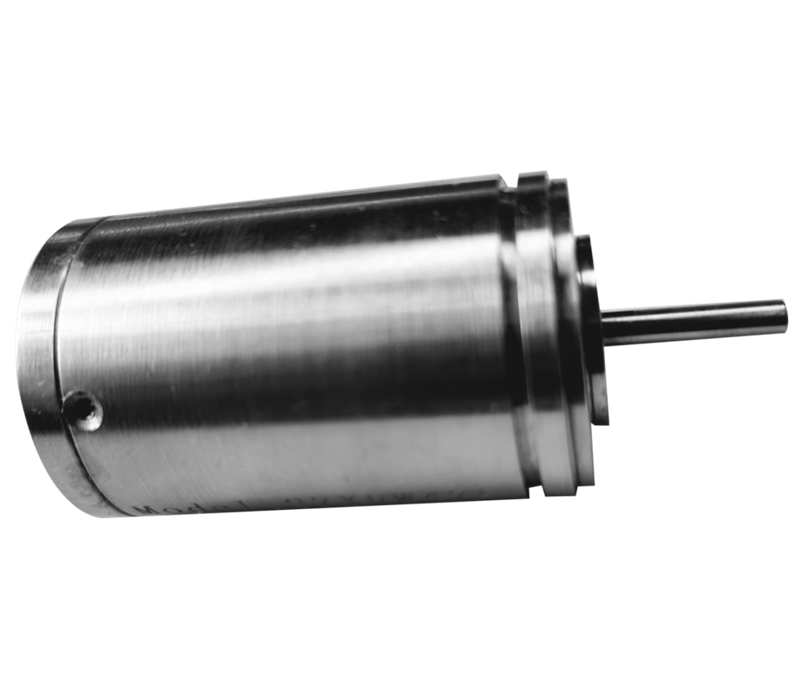

J27XFW275
Windouble
Main Parameters
| Model | J27XFW275 |
| Pole Pairs | 1 |
| Input Voltage | AC 7 Vrms |
| Input Frequency | 18000 Hz |
| Transformation Ratio | 0.5 ±10% |
| Accuracy | ±7' max |
| Phase Shift | 34° ±3° |
| Input Impedance | (220 ±33) Ω |
| Output Impedance | (395 ±60) Ω |
| Dielectric Strength | AC 250 Vrms 1min |
| Insulation Resistance | 100 MΩ min |
| Operating Temperature Range | -40℃ to +140℃ |
High Reliability
Robust, capable of withstanding shocks and vibrations,high-temperature or dirty environments
System Integrity
Includes all necessary components
Ease of Installation
Simplifies the installation process
Main Advantages
Durability: High-integrity seal, resistant to extreme conditions
Non-contact Measurement: Converts mechanical shaft position into electrical signals
Versatility: Suitable for a variety of precision servo applications
Environmental Adaptability: Stable operation in extreme temperatures
Application Industries
Defense, Aerospace, Servo Motor
