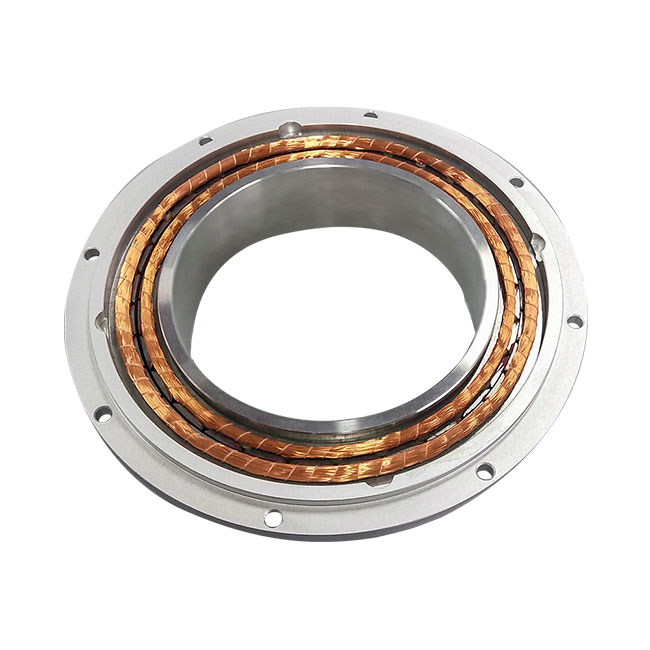

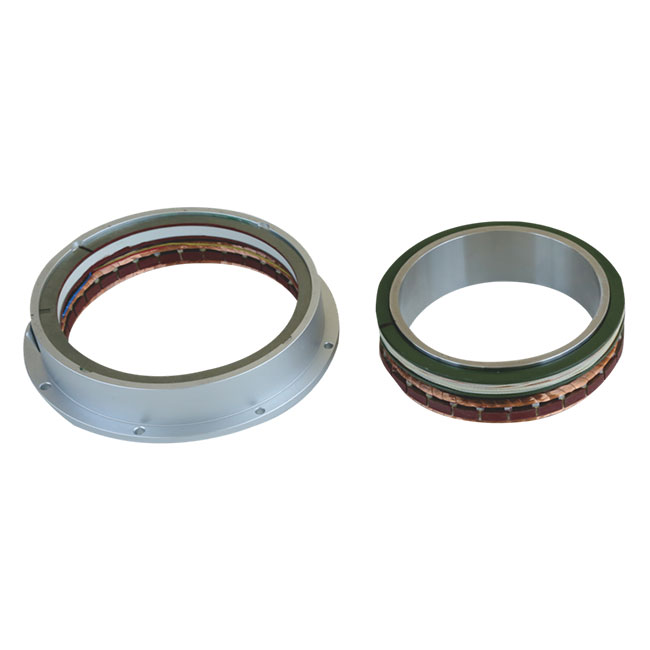

140XFW975
Windouble
Main Parameters
| Model | 140XFW975 |
| Pole Pairs | 1 |
| Input Voltage | AC 7 Vrms |
| Input Frequency | 10000 Hz |
| Transformation Ratio | 0.5 ±10% |
| Accuracy | ±10' max |
| Phase Shift | -22° ±3° |
| Input Impedance | (100 ±15) Ω |
| Output Impedance | (580 ±87) Ω |
| Dielectric Strength | AC 500 Vrms 1min |
| Insulation Resistance | 250 MΩ min |
| Maximum Rotational Speed | 20000 rpm |
| Operating Temperature Range | -55℃ to +155℃ |
Precision and Reliability
Resolvers, the go-to choice for displacement and angle sensing after optical rotary encoders, offer a distinct advantage in converting rotor angular positions into two distinct voltages, providing a clear representation of absolute position without the need for recalibration post-power-up.
Absolute Signal: Unlike incremental encoders, resolvers deliver an absolute signal within a single revolution, eliminating the need for calibration upon startup.
Brushless Design: Modern brushless resolvers ensure maintenance-free operation and are inherently fail-safe, even under the most demanding conditions such as extreme temperature fluctuations.
Applications
Electric Servo Drives: Ensure precise positioning and motion control.
Positioning Drives: Offer accurate and reliable operation in machinery with synchronized motor requirements.
Industrial Environments: Stand up to the rigors of harsh conditions, making them ideal for industries like textile and mining, where precision and durability are paramount.
Diverse Industries
Textile Machinery: Known for their robust performance in continuous operation.
Mining Machinery: Withstand the tough conditions of the mining sector.
Servo Motors: Deliver accurate control for high-precision motion systems.
Industrial Robots: Ensure precise and repeatable movements in automated processes.
Harsh Environmental Applications: Operate flawlessly in maintenance-free systems exposed to harsh environments
